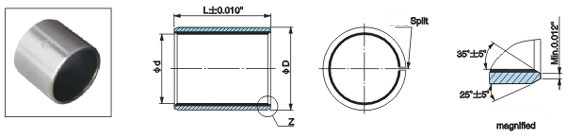

SF-10 Self-lubricating bearings inch sizes




Unit:mm
Nominal Bearing Bore
Recommended
Instrlled Bearing I.D.
Bearing Length and Part Number
Shaft Dia.
Housing Bore
1/3
5/32
3/16
1/4
3/8
1/2
5/8
3/4
7/8
1
11/8
11/4
11/2
1/8
0.1243 0.1236
0.1873 0.1878
0.1243 0.1268
02/02
02/03
5/32
0.1554 0.1547
0.2186 0.2191
0.1556 0.1581
025/025
025/04
3/16
0.1865 0.1858
0.2497 0.2503
0.1867 0.1893
03/03
03/04
03/06
1/4
0.2490 0.2481
0.3122 0.3128
0.2492 0.2518
04/04
04/06
5/16
0.3115 0.3106
0.3747 0.3753
0.3117 0.3143
05/06
05/08
3/8
0.3740 0.3731
0.4684 0.4691
0.3742 0.3769
06/03
06/04
06/06
06/08
06/10
06/12
7/16
0.4365 0.4355
0.5309 0.5316
0.4367 0.4394
07/08
07/12
1/2
0.4990 0.4980
0.5934 0.5941
0.4992 0.5019
08/04
08/06
08/08
08/10
0812
0814
9/16
0.5615 0.5605
0.6559 0.6566
0.5617 0.5644
09/06
09/08
09/10
09/12
5/8
0.6240 0.6230
0.7184 0.7192
0.6242 0.6270
10/04
10/08
10/10
10/12
10/14
10/16
11/16
0.6865 0.6855
0.7809 0.7817
0.6867 0.6895
11/14
3/4
0.7491 0.7479
0.8747 0.8755
0.7493 0.7525
12/04
14/06
12/08
12/10
12/12
12/16
13/16
0.8116 0.8106
0.9372 0.9380
0.8118 0.8150
13/12
13/18
7/8
0.8741 0.8729
0.9997 1.0005
0.8743 0.8775
14/04
14/06
14/12
14/16
14/20
1
0.9991 0.9979
1.1247 1.1255
0.9993 1.0025
16/06
06/08
16/12
16/16
16/20
16/24
11/8
1.1238 1.1226
1.2808 1.2818
1.1240 1.1278
18/06
18/10
18/12
18/16
11/4
1.2488 1.2472
1.4058 1.4068
1.2490 1.2528
20/06
20/12
20/14
20/16
20/20
13/8
1.3738 1.3722
1.5308 1.5318
1.3740 1.3778
22/12
22/16
22/24
11/2
1.4988 1.4972
1.6558 1.6568
1.4990 1.5028
24/08
24/16
24/18
24/20
24/24
15/8
1.6238 1.6222
1.7808 1.7818
1.6240 1.6278
26/16
26/24
Other lengths to order

Unit:mm
Nominal Bearing Bore
Recommended
Installed Bearing I.D.
Bearing Length and Part Number
ÖᾶShaft Dia.
Housing Bore
1
1 1/2
1 5/8
2
2 1/4
2 3/8
2 1/2
3
3 1/2
3 3/4
4
4 1/2
1 3/4
1.7487 1.7471
1.9371 1.9381
1.7489 1.7535
28/16
28/24
28/32
1 7/8
1.8737 1.8721
2.0621 2.0633
1.8739 1.8787
30/16
30/36
2
1.9987 1.9969
2.1871 2.1883
1.9989 2.0037
32/16
32/24
32/32
32/40
2 1/8
2.1257 2.1239
2.3118 2.3130
2.1262 2.1326
34/48
2 1/4
2.2507 2.2489
2.4365 2.4377
2.2509 2.2573
36/32
36/40
36/48
36/56
36/60
36/64
36/72
2 1/2
2.5011 2.4993
2.6869 2.6881
2.5013 2.5077
40/32
40/40
40/48
40/56
40/60
40/64
40/72
2 3/4
2.7500 2.7482
2.9358 2.9370
2.7502 2.7566
44/32
44/36
44/40
44/48
44/56
44/60
44/64
44/72
2 7/8
2.8752 2.8734
3.0610 3.0623
2.8754 2.8819
46/32
46/36
46/40
46/48
46/56
46/60
46/64
46/72
3
3.0000 2.9982
3.1858 3.1872
3.0002 3.0068
48/32
48/36
48/40
48/48
48/56
48/60
48/64
48/72
3 1/4
3.2500 3.2480
3.4358 3.4372
3.2502 3.2568
52/32
52/38
52/40
52/48
52/56
52/60
52/64
52/72
3 1/2
3.5000 3.4978
3.6858 3.6872
3.5002 3.5068
56/32
56/38
56/40
56/48
56/56
56/60
56/64
56/72
3 5/8
3.6250 3.6228
3.8108 3.8122
3.6252 3.6318
58/32
58/36
58/40
58/48
58/56
58/60
58/64
58/72
3 3/4
3.7500 3.7478
3.9358 3.9372
3.7502 3.7568
60/32
60/36
60/40
60/48
60/56
60/60
60/64
60/72
4
4.0000 3.9978
4.1858 4.1872
4.0002 4.0068
64/32
64/36
64/40
64/48
64/56
64/60
64/64
64/72
4 1/4
4.2500 4.2478
4.4358 4.4372
4.2502 4.2568
68/32
68/36
68/40
68/48
68/56
68/60
68/64
68/72
4 3/8
4.3750 4.3728
4.5608 4.5622
4.3752 4.3818
70/32
70/36
70/40
70/48
70/56
70/60
70/64
70/72
4 1/2
4.5000 4.4978
4.6858 4.6872
4.5002 4.5068
72/32
72/36
72/40
72/48
72/56
72/60
72/64
72/72
4 3/4
4.7500 4.7475
4.9358 4.9374
4.7502 4.7572
76/32
76/36
76/40
76/48
76/56
76/60
76/64
76/72
5
4.9986 4.9961
5.1844 5.1860
4.9988 5.0056
80/32
80/36
80/40
80/48
80/56
80/60
80/64
80/72
5 1/4
5.2500 5.2475
5.4358 5.4374
5.2502 5.2570
84/32
84/36
84/40
84/48
84/56
84/60
84/64
84/72
5 1/2
5.5000 5.4975
5.6858 5.6874
5.5002 5.5070
88/32
88/36
88/40
88/48
88/56
88/60
88/64
88/72
5 3/4
5.7500 5.7475
5.9358 5.9374
5.7502 5.7570
92/32
92/36
92/40
92/48
92/56
92/60
92/64
92/72
6
6.000 5.9975
6.1858 6.1874
6.0002 6.0070
96/32
96/36
96/40
96/48
96/56
96/60
96/64
96/72
6 1/4
6.2500 6.2475
6.4358 6.4374
6.2502 6.2570
100/32
100/36
100/40
100/48
100/56
100/60
100/64
100/72
6 1/2
6.5000 6.4975
6.6858 6.6874
6.5002 6.5070
104/32
104/36
104/40
104/48
104/56
106/60
104/64
104/72
6 3/4
6.7500 6.7475
6.9358 6.9374
6.7502 6.7570
108/32
108/36
108/40
108/48
108/56
108/60
108/64
108/72
7
6.9954 6.9929
7.1812 7.1830
6.9956 7.0026
112/32
112/36
112/40
112/48
112/56
112/60
112/64
112/72
Other lengths to order
