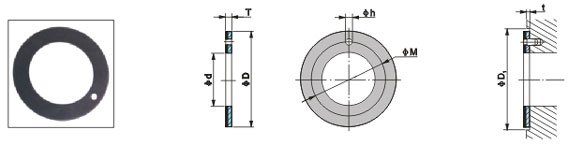

SF-10W Thrust
washers metric sizes
|
Part No.
|
Recommended
|
Size of washer
|
Size for installation
|
|
d+0.25
0
|
D0-0.25
|
T0-0.05
|
M¡À0.125
|
h +0.4 +0.1
|
t¡À0.2
|
D1 +0.12 0
|
|
SF-10W10
|
8
|
10
|
20
|
1.5
|
15
|
1.5
|
1
|
20
|
|
SF-10W12
|
10
|
12
|
24
|
18
|
24
|
|
SF-10W14
|
12
|
14
|
26
|
20
|
2
|
26
|
|
SF-10W16
|
14
|
16
|
30
|
23
|
30
|
|
SF-10W18
|
16
|
18
|
32
|
25
|
32
|
|
SF-10W20
|
18
|
20
|
36
|
28
|
3
|
36
|
|
SF-10W22
|
20
|
22
|
38
|
30
|
38
|
|
SF-10W24
|
22
|
24
|
42
|
33
|
42
|
|
SF-10W26
|
24
|
26
|
44
|
35
|
44
|
|
SF-10W28
|
26
|
28
|
48
|
38
|
4
|
48
|
|
SF-10W32
|
30
|
32
|
54
|
43
|
54
|
|
SF-10W36
|
36
|
38
|
62
|
50
|
62
|
|
SF-10W42
|
40
|
42
|
66
|
54
|
66
|
|
SF-10W48
|
46
|
48
|
72
|
2
|
61
|
1.5
|
74
|
|
SF-10W52
|
50
|
52
|
78
|
65
|
78
|
|
SF-10W62
|
60
|
62
|
90
|
76
|
90
|
SF-10L Flat
strip material metric sizes
|
Part No.
|
Length¡À1
|
Width¡À1
|
Thickness 0 -0.05
|
|
SF-10L1.0
|
500
|
130
|
1.0
|
|
SF-10L1.5
|
500
|
130
|
1.5
|
|
SF-10L2.0
|
500
|
130
|
2.0
|
|
SF-10L2.5
|
500
|
130
|
2.5
|
|
|
