SF-20 Prelubricated bearings

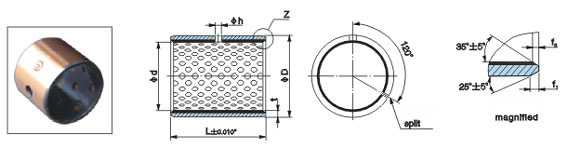

■ Structure

1、  POM with lead 0.3-0.5mm

2、Porous bronze 0.2-0.3mm

3、Steel backing

4、Copper plating 0.002m

■ Application characteristics

1、  It is superior to those known marginal lubricating materials when lacking of lubrication oil.

2、Owing to its thick and hard surface of friction, it has the advantage of low wear.

3、  High mechanical strength,it can stand heavy dynamic and static load. It is used in high load capacities and low speed with rotational, oscillating or frequent stop-start motion.

4、  It can work long time without oil in the condition of boundary lubrcation,under oil or grease lubrication Interval, the work is longer.

5、  It is machinable for the thicker of POM.

6、  The bushes can be applied in auto chassis, forging machine, metallurgical, civil engineering, power station, strip rolling industries etc.

　 provide non-standardized products:Cylindrical bushes, flanged bushes,trrust washers,flat strip material,half bearing,wear plate,SF-20 with steel bush.
